Think. Tap. Create.
Endless Ideas at Your Fingertip.

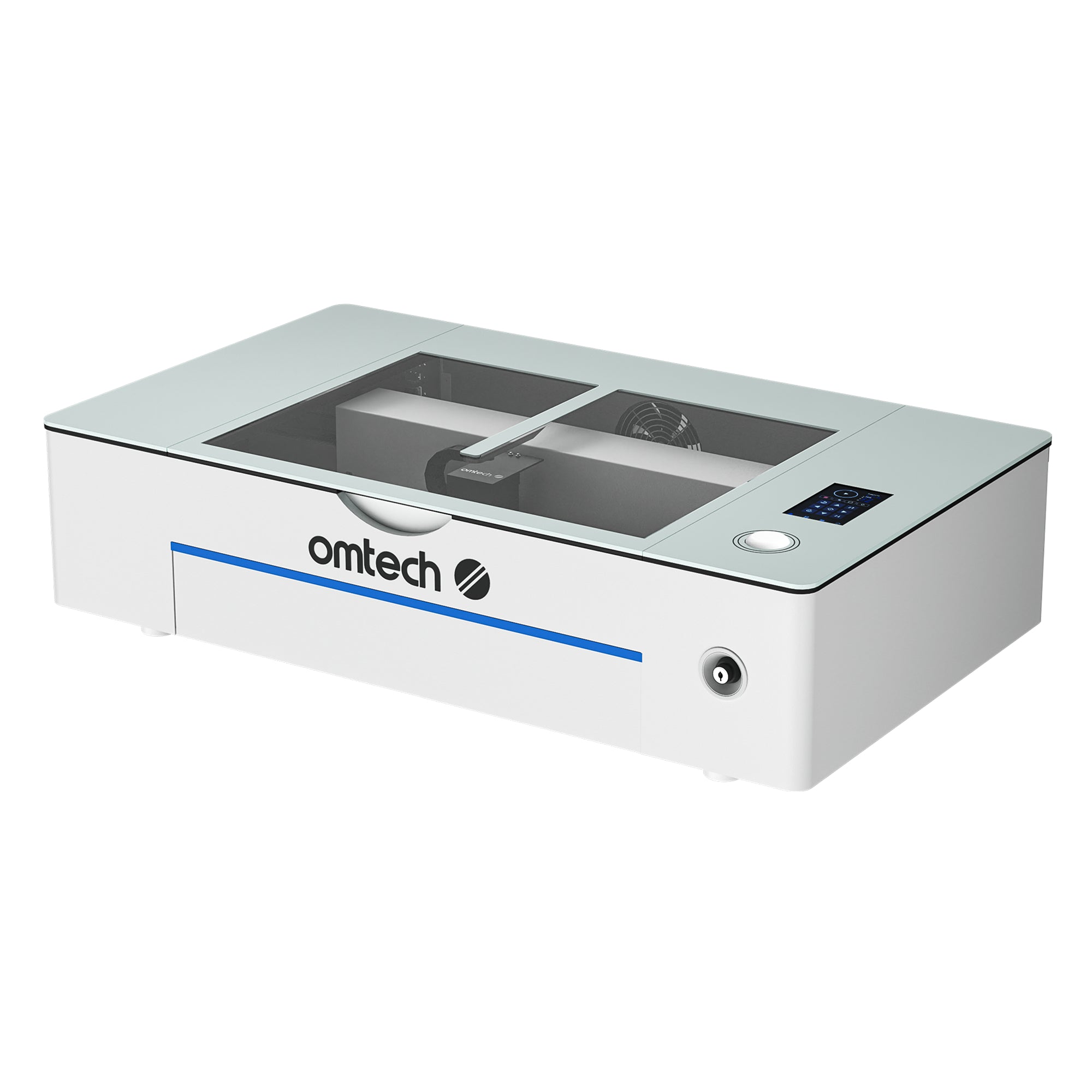

OMTech Polar+ 55W
Touchscreen for Effortless Engraving
Streamline Your Workflow - Manage Settings Anytime, Anywhere
Power Loss? Stay Calm!
Polar+ picks up where it left off, saving you time and materials
Power Upgraded
to 55W
Polar+ Effortlessly Cuts 22mm
Acrylic & 15mm Wood Planks
Spacious Working Area
21% Larger Than Competitors
Unlock New Dimensions with Rotary Engraving
Polar+ Comes With 2 Free Rotary Axes for Versatile Creations
Craft Safely with Comprehensive Protections
Ideal for Home Use—Protects Against Eye Strain,
Light Leaks, and Smoke
Five Safety Features
for Secure Laser Engraving
Engineered for Your Ease
Keeps Your Laser Running Cool and Extends Its Lifespan
Removes Debris and Prevents Burning for Flawless Engraving and Cutting
Efficiently Expels Smoke and Dust for a Cleaner Workspace
Black galvanized material prevents discoloration—just wipe to clean
Craft with Endless Possibilities Across Multiple Materials
See Polar+ in Action
Stunning Creations from Everyday Materials
All-in-One Solution—No
Extras Required
Complete Set of Engraving
Tools Included
Compatible with Multiple Software for Simple Setup
LightBurn, RDworks, CorelLaser, and More
Expert U.S. Laser Support You Can Count On
Fast, Reliable Support to Keep Your Laser Engraving Business on Track
Specifications & Package List
Specifications:
Rated Power: 55W Dimensions: 38.2 x22.3 x 9.2 in. (970x565x234 mm) Honeycomb Workbed Dimensions: 22.5 x 13.2 x 0.9 in. (571x336x22 mm) Standard Processing Area: 20.1 x 11.8 in. (510x300 mm) Trayless Processing Area: 13.7 x 8.2 in. (350x21 mm) Rotary 1 Processing Area: 0-9.4 x 2.4-2.9 in. (0-240x60-75 mm) Rotary 2 Processing Area: 0-9.4 x 1.2-2.3 in. (0-240x30-60 mm) Front & Rear Pass-Through Area: 14.1 x 0.2 in. (360x5 mm) Max. Material Thickness: 0.7 in. (17 mm), 2 in. (51 mm) (Without Bed) Est. Laser Service Life: 11000 hr. Max. Processing Speed: 19.6 ips (500 mm/s) Max. Resolution: 1000 dpi Mini. Letter Size: 0.04 x 0.04 in. (1x1 mm) Water Chiller Capacity: 1.6 qt. (1.5 L) Flow Rate: 142 gph (540 L/h) Camera Resolution: 5MP Field of View: 20.1 x 11.8 in. (510x300 mm) Accuracy: ±0.04 in. (±1 mm) Air Assist Port Diameter: 0.4 in. (10 mm) Air Flow: 13.8 cfm (392 L/min.) Exhaust Fan Port Diameter: 5.9 in. (150 mm) Air Flow: 282/353 cfm (480/600 m3/h) Data Transmission: Wifi, USB Cable, Ethernet Cable Provided Operating Software: RDWorks Compatible Operating Software: LightBurn, CorelDRAW, RDWorks Certification: CE, FDA Net Weight: 104 lb. (47 kg) Warranty: 2 Years |
Package List:
55W Desktop Laser Engraver x 1 Rotary Axes x 2 Rotary Cables x 2 60W Duct Fan x 2 Fan Remote Control x 1 Adapter Ring x 1 Exhaust Pipes x 2 Hose Clamps x 3 Power Cord x 1 Ethernet Cable x 1 USB Cables x 2 Big Storage Box x 1 Small Storage Box x 1 Basswood Blanks x 5 Cardboard Blanks x 5 Acrylic Blanks x 5 Straps x 2 User Manual x1 |
Frequently Asked Questions
The brand new integrated touchscreen makes the Polar+ the smartest desktop laser engraver we have ever made! The entire engraving process can be completed on the touchscreen without the need to connect to a laptop, significantly saving creation time!
a. One-tap Auto Focus: Simply tap the focus button on the screen to start auto-focusing.
b. One-tap Positioning: Simply tap the position button on the screen to locate the position you want to start engraving.
c. One-tap Framing: Simply tap the frame button on the screen to automatically outline the size of the area you want to engrave.
d. Tap to move the laser head easier and more convenient.
Yes! You can engrave offline with a USB flash drive, simply plug in and select the file you want to engrave—no laptop needed, which is very convenient for those who need to engrave the same file repeatedly.
When using a laptop, you need to turn your head back and forth to look at both the laptop and the machine. However, by using a touchscreen to move the laser head, your focus can remain on the machine's engraving area the entire time.
The OMTech Polar+ is specifically designed for laser hobbiests, makers, DIY enthusiasts, and small businesses. The convenience of operation provided by the touchscreen can help you unleash endless creativity and enhance your productivity!
Yes! When the Polar+ experiences a power outage or is accidentally disconnected, it automatically saves the engraving progress. Once power is restored, a dialog box will pop up on the touchscreen asking if you want to continue the previous engraving. Simply tap "Yes" and the laser head will automatically return to the last position and continue engraving.
Yes! The Polar+ comes with two rotary axes for different sizes to engrave cylindrical objects, so you do not need to purchase additional rotary axes separately.
With the 5MP camera, you can preview the design file on your object. Simply drag the design onto the object to preview and adjust the size of the engraving area, ensuring that the dimensions are appropriate. This feature is especially convenient when engraving smaller items like jewelry.
The OMTech Polar+ laser engraver comes with a 2-year general warranty, with a 1-year warranty specifically for the laser tube. This warranty covers the machine and its components, ensuring reliability and peace of mind for our customers.
The OMTech Polar+ laser engraver is compatible with Lightburn. Get Lightburn here today!
