• 8” x 12” (200 x 300mm) engraving area
• 28” x 20” x 10” (70 x 50 x 25cm) overall dimensions

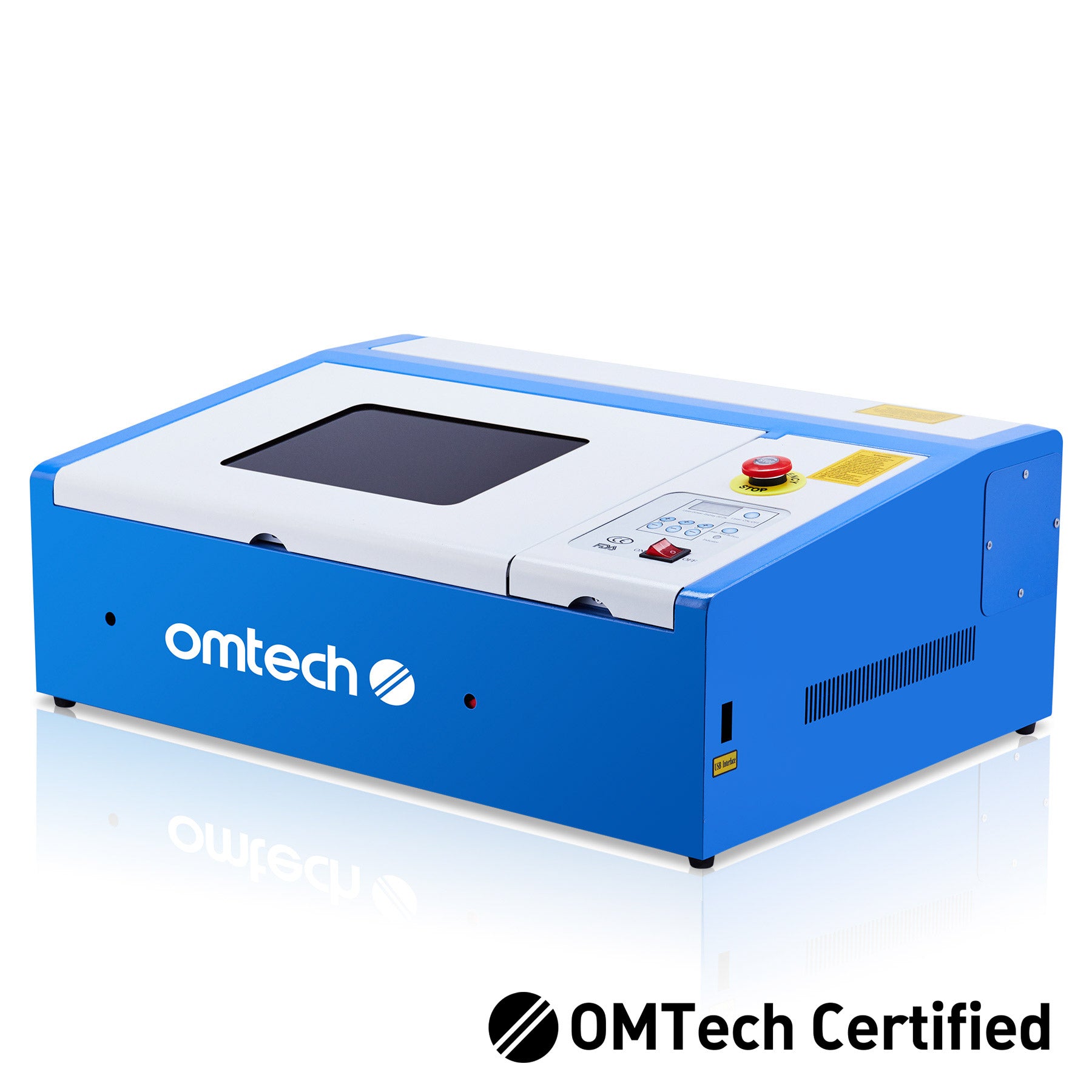

• Compact laser engraving machine with endless creative possibilities

Specs:

• Recommended engraving speed: 100 - 255 mm/s
• Recommended cutting speed: 1-20mm/s (actual speed depends on material)
• 12mm Focal lens diameter
• 20mm Mirror diameter
• Resolution up to 1500 dpi
• 0.5” Z-depth (Maximum workspace height)

Compatibility:

• Includes LaserDRW software with file viewing, project framing, basic design functions, and speed laser settings to convert your images into engravable G-Code files.
• LaserDRW is perfectly compatible with Windows 7, 8, and 10 (64/32 bit), XP, 2000, and Vista.
• Work side-by-side with programs like Corellaser, CorelDraw (NOT compatible with LightBurn)
• Photo-ready for images in TIF, BMP, JPG, JPEG, WMF, EMF, and PLT formats
• Not readily compatible with rotary axis devices


Power:

• The integrated power supply features increased response speed, performance, and cutting power—it’s beaming with possibilities!
• A high-precision stepper motor is equipped to provide stability and extreme accuracy to your laser engraving projects.
• Cut up to 1/8" thick plywood and acrylic/plexiglass
• Uses standard 110V AC power connection

Laser Tube Lifetime:

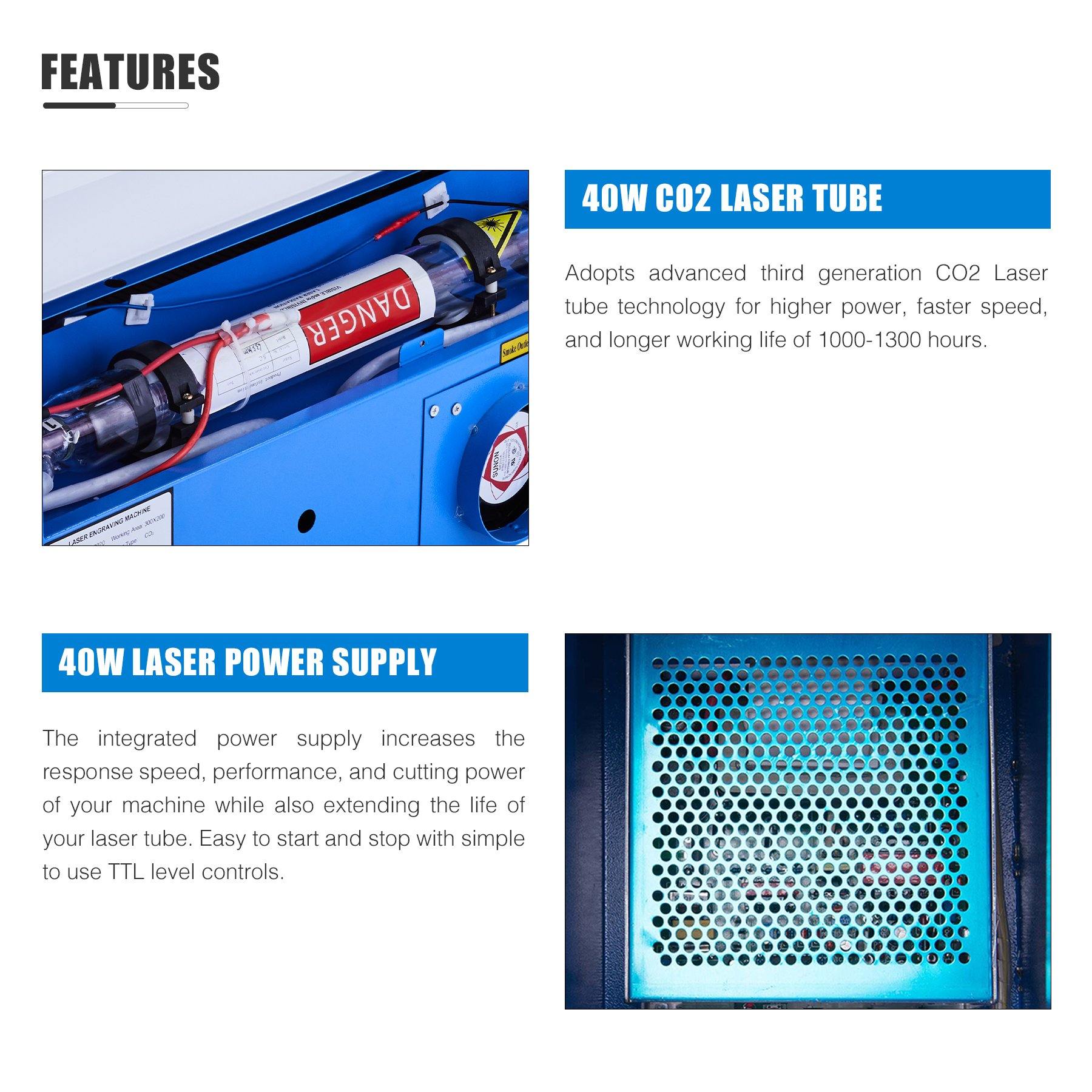

• 40W CO2 laser tube with an estimated lifetime of up to 2,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 1,500–2,000 Hours
• Moderate Power 40–70% = 1,000–1,200 Hours
• High Power 70–100% = 400–600 Hours

Application-Friendly:

• Materialize your vision: Our CO2 lasers are capable of engraving materials such as wood, glass, leather, acrylic, coated metals (anodized aluminum), and more.
• Bare metal marking requires a pre-treatment coating.

Cutting Edge Features:

• COMPACT ENGRAVING POWER: Our most portable CO2 laser easily fits on your workbench, offers accessibility to beginner engravers, and packs plenty of power for your small craft projects.
• DOUBLE DUTY WORK SURFACE: Equipped with a stabilizer clamp to hold irregular-shaped objects in place and a vented level board for regular-shaped products.

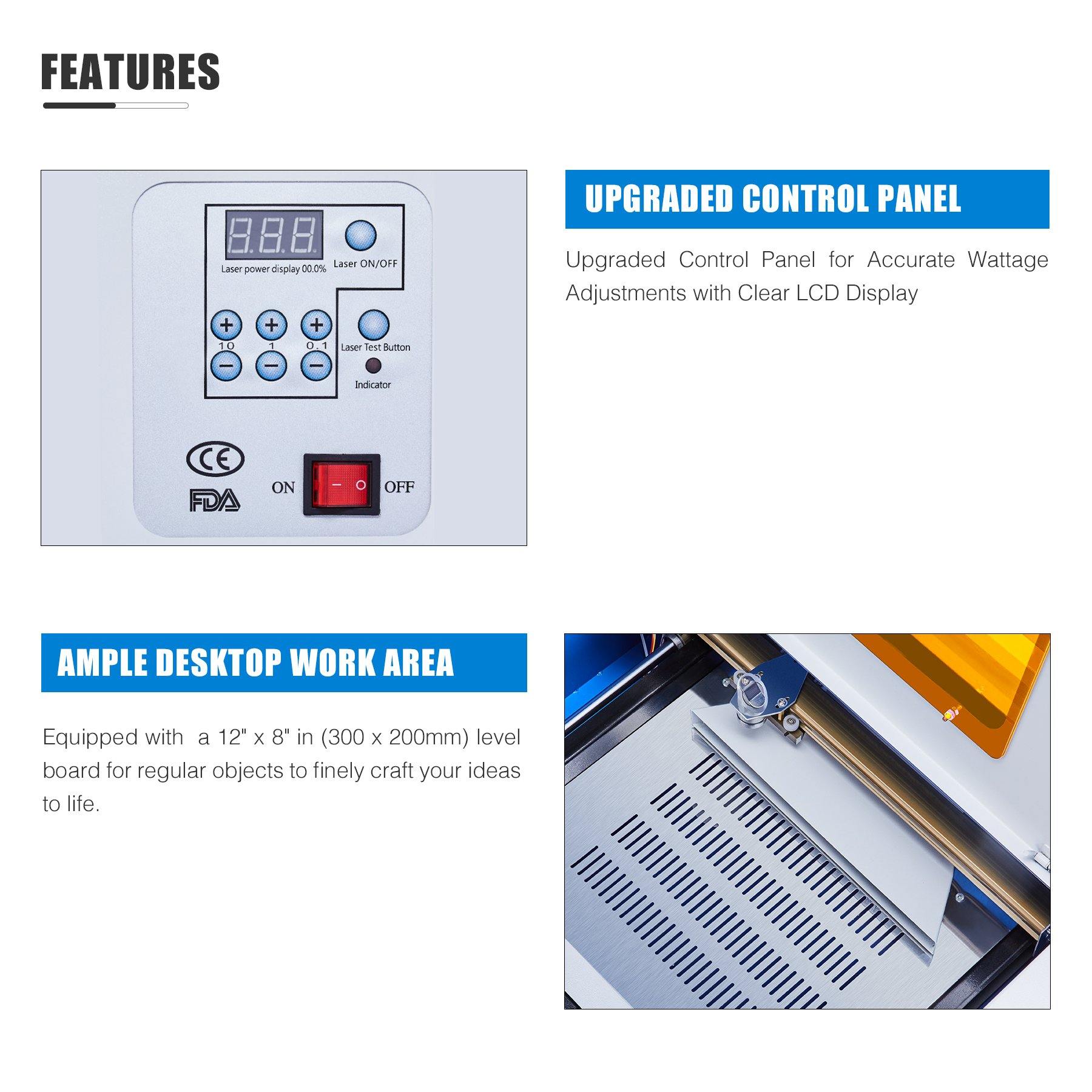

• DIGITAL LCD CONTROLS: A user-friendly LCD control board sets the laser power.
• BUILT-IN VENTILATION: Integrated fan to boost laser performance, improve ventilation, and reduce noise. A triangular exhaust port and built-in air compressor create a safe work environment.
• SUPERIOR STEPPER MOTOR: Equipped with efficient stability to create immaculately finished products in less time.
• EMERGENCY STOP: The E-Stop safety button immediately stops the machine in case of emergency.
• WATER COOLING SYSTEM: Pre-installed hoses and the included water pump allow for a fast and easy setup. Only use with distilled water, ensuring it stays between 60–70°F (16–21°C).
• CONVENIENT MOBILITY: Four removable locking wheels allow fluid portability across your workspace.
• USB port connects directly to flash drives and PCs.

Package Includes:

• 1 x Laser Engraver Machine
• 1 x Water Pump
• 1 x USB Type-B to Type-A Cable
• 1 x USB Flash Drive with Software
• 1 x USB Key
• 1 x Venting Exhaust Duct
• 1 x Power Cord
• 1 x Double-Sided Tape
• 1 x Stainless Steel Clamp
• 4 x Locking Caster Wheels
• 1 x Grounding Cable
• 1 x Instruction Manual

OMTech Certified Warranty:

• Great: 1-year warranty on machine parts and hardware, 3-month warranty on laser tubes and power supplies
• Good: 6-month warranty on machine parts and hardware, 3-month warranty on laser tubes and power supplies
• Functional: 3-month warranty on machine parts and hardware, 1-month warranty on laser tubes and power supplies

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
• One 45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California
