ZF2435-100 - 100W CO2 Laser Engraver Cutting Machine with 24"x35" Working Area (WITH 5200 WATER CHILLER)

ZF2435-100 - 100W CO2 Laser Engraver Cutting Machine with 24"x35" Working Area (WITH 5200 WATER CHILLER)

Regular price $4,399.99
/

Shipping calculated at checkout.

Do you want to visit an OMTech machine in person? Schedule a Demo Room visit here

Convenient Size:

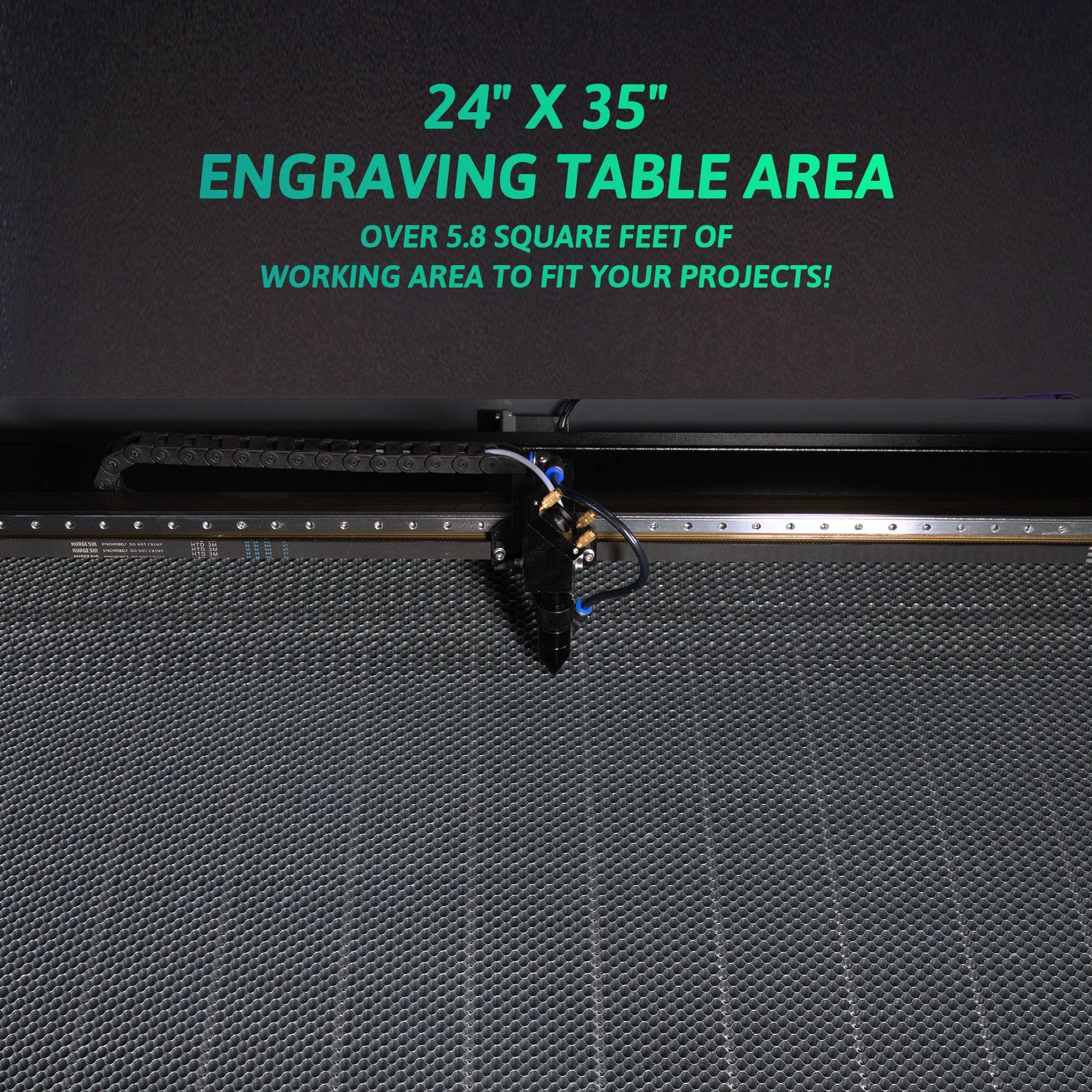

  • 24” x 35” (600 x 900mm) engraving area

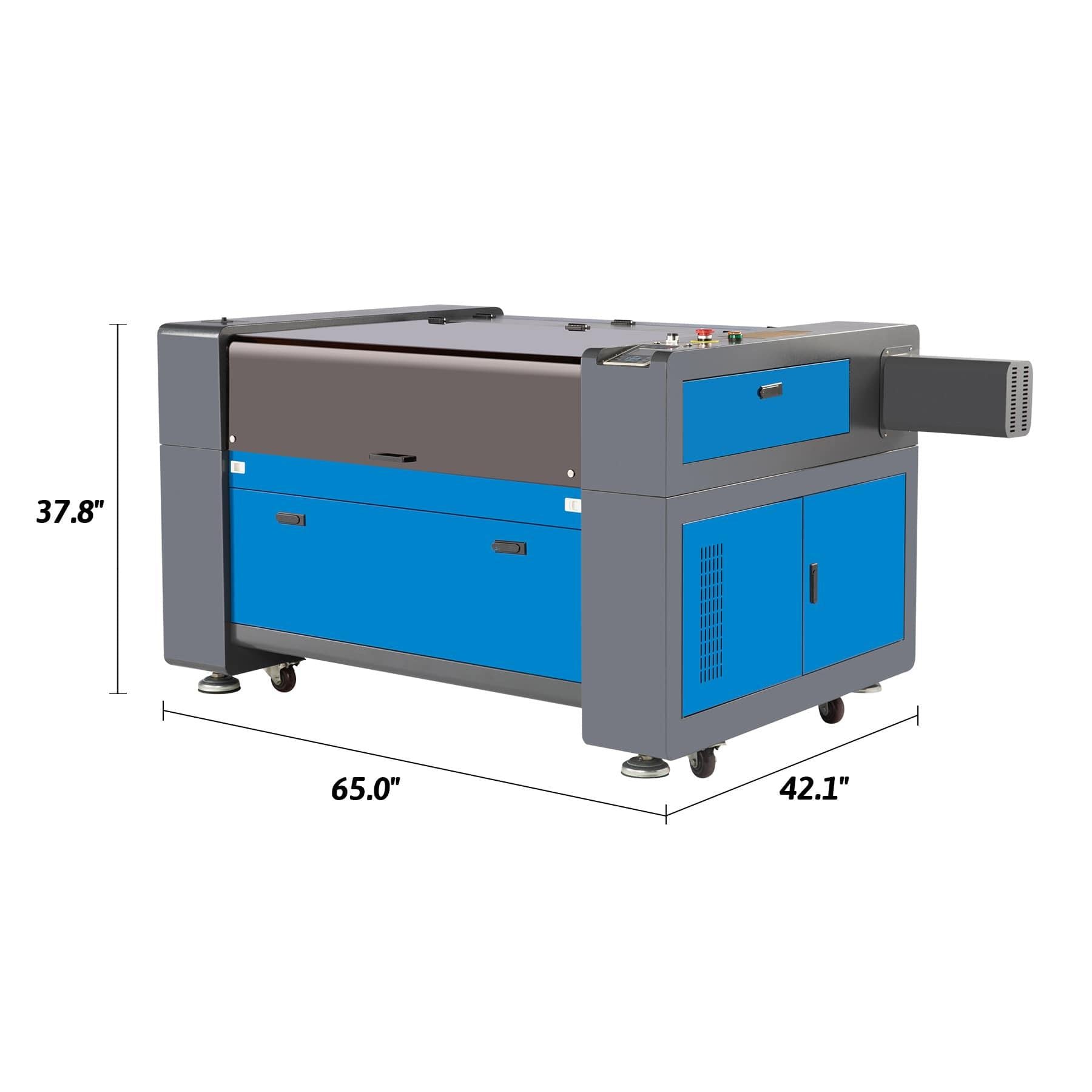

  • 65” x 42” x 37.8” (165 x 107 x 96cm) overall dimensions
  • Tackle on larger-scale projects with ease.
  • Adjustable base for stabilization, allowing you to take control and adjust the height.

Compatibility:

  • Perfectly compatible with Windows 7, 8, and 10 (64/32 bit), XP, 2000, and Vista.
  • Compatible with macOS (Version 10.11 and higher) ONLY if you use LightBurn software.
  • Our machines are ready to work side-by-side with programs like LaserDraw, CorelLaser, and more.
  • Photo-ready for images in HPLG, BMP, GIF, JPG, JPEG, DXF, DST, and AI formats, and more.

Power:

  • The integrated power supply features increased response speed, performance, and cutting power - it’s beaming with possibilities!
  • 100W CO2 laser tube with an estimated lifetime of 8,000 operation hours.
  • Engraving speed of 100-600 mm/s.
  • Cutting Speed of 1-40 mm/s.
  • Resolution up to 4500 dpi.
  • Cut up to 10 mm (⅖″) thick acrylic/plexiglass

Average Parameter Settings: Click Here

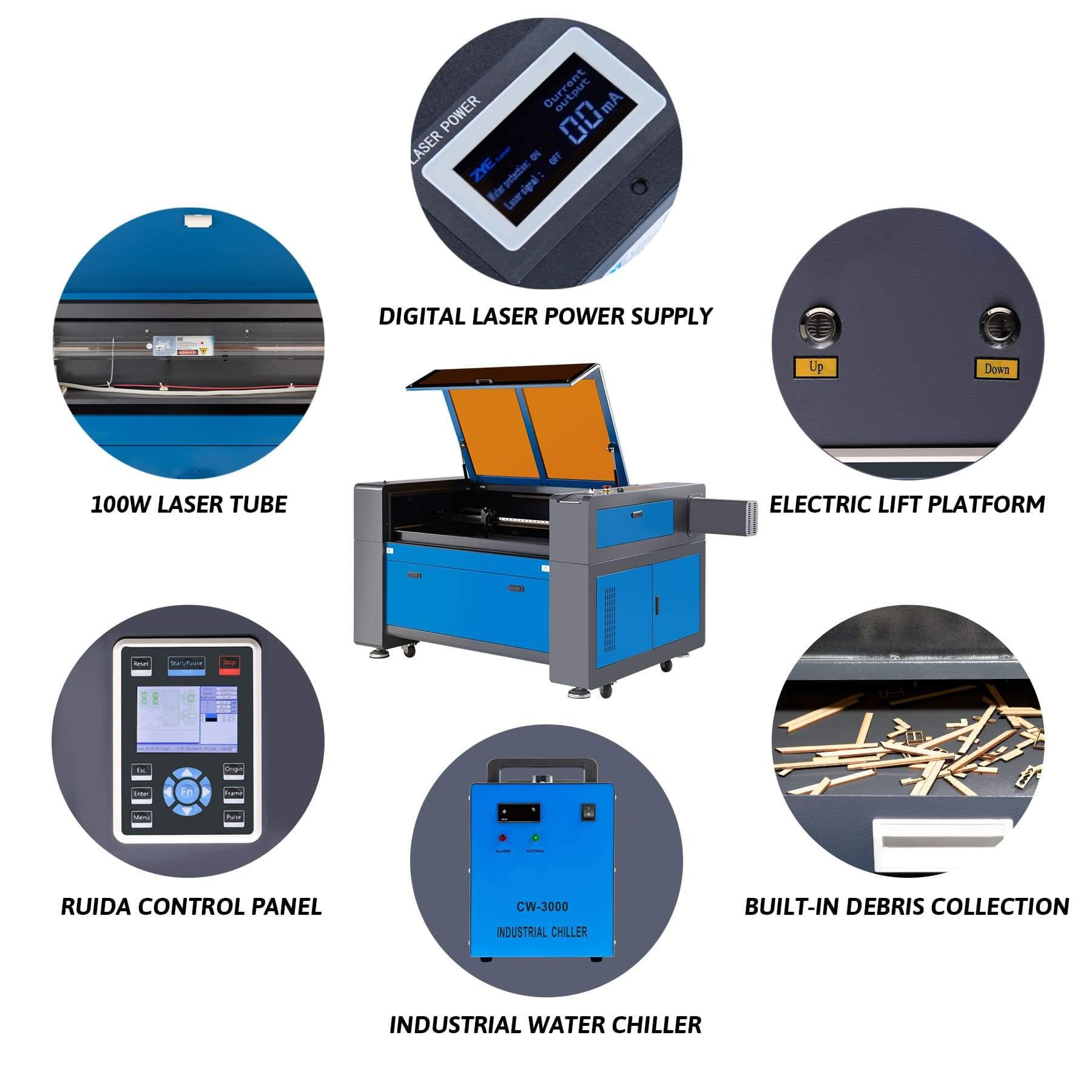

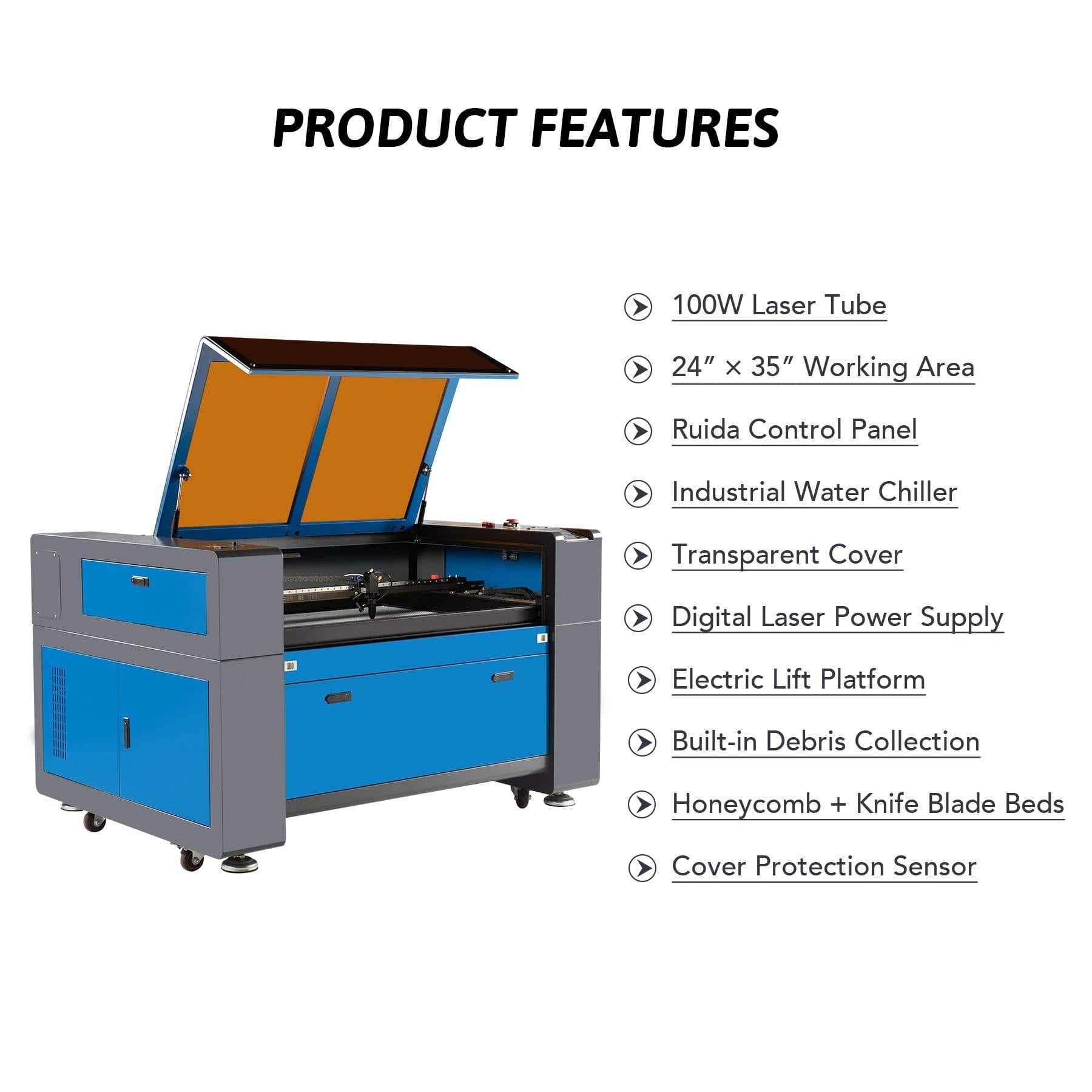

    Cutting Edge Features:

    • 100W LASER: This laser engraving and cutting machine by OMTech comes with a monstrous 100W CO2 laser tube to engrave your designs even more quickly, clearly, and deeply; to keep things cool and running smoothly, this 100W engraver comes with an industrial-strength CW-5200 water chiller
    • MOTORIZED WORKED: This laser cutter offers a wide 35x24 inch workspace made even more useful by the machine's honeycomb and knife blade engraving platforms, 2 wide pass-through doors, and motorized bed, eliminating tedious manual adjustment and speeding production
    • RUIDA DIGITAL CONTROLS: This laser engraver's Ruida panel features advanced functions to help you perfect your sophisticated engravings; its convenient LCD screen provides complete control over the laser marking process, and Windows-compatible editions of RDWorks v8 and CorelLaser come included
    • SAFE & EASY OPERATION: A digital laser power supply provides sure & easily monitored operation for your tube's expected 8000-hour life; password & key protection prevents unauthorized use; the wide viewing cover includes tinted eye protection & automatically cuts power when opened; a built-in air-assist quickly blows away smoke, dust, and sparks; and a large-capacity bin collects debris as you work
    • INSTALLS QUICKLY, LASTS YEARS: Our CO2 laser cutters have been rigorously tested and we back them with our usual strong warranty and friendly 24/7 customer service to provide you a worry-free purchase, an easy installation, and a great product!

    Package Includes:

    1 x Laser Engraver

    1 x CW-5200 Water Chiller

    10 x Hex Wrenches

    1 x Grounding Wire

    1 x USB Cable

    1 x Ethernet Cable

    1 x Power Cord

    1 x Water Pump

    1 x Roll of Double-Sided Tape

    1 x Exhaust Pipe

    1 x Hose Clamp

    1 x Water Pipe

    2 x Keys

    1 x USB Flash Drive (with Software)

    1 x Accessory Bag

    1 x Instruction Manual

    Warranty:

    • No need to worry! We offer a 2-year warranty on all machines.
    • 1-year warranty on consumables (i.e. laser tube and power supply)

    Certifications:

    • FDA Compliant
    • CE Certification
    • ISO9001 Quality Certification



    Compatible Materials:

    Laser Cutting:

    • Acrylic
    • *Wood
    • Leather
    • Plastics
    • Fabrics
    • MDF
    • Cardboard
    • Paper
    • Corian
    • Foam
    • Fiberglass
    • Rubber

    Marking/Engraving:

    • Acrylic
    • Wood
    • Leather
    • Plastics
    • Fabrics
    • Glass
    • Rubber
    • Cork
    • Brick
    • Granite
    • Marble
    • Tile
    • River Rock
    • Bone
    • Melamine
    • Phenolic
    • *Aluminum
    • *Stainless Steel
    • *Titanium

    *Cannot cut hardwoods like mahogany

    *CO2 lasers only mark bare metals when anodized or treated.

    Contact us with questions on specific materials not listed, we can process a sample for confirmation.

    Some PVC-based acrylics can create toxic fumes when lasered.
