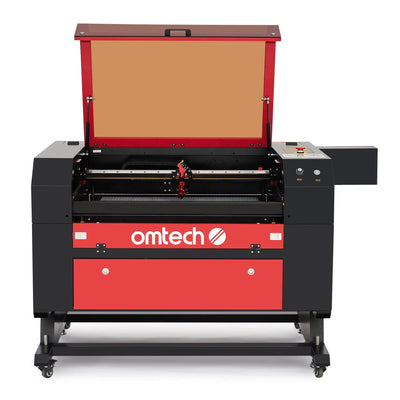

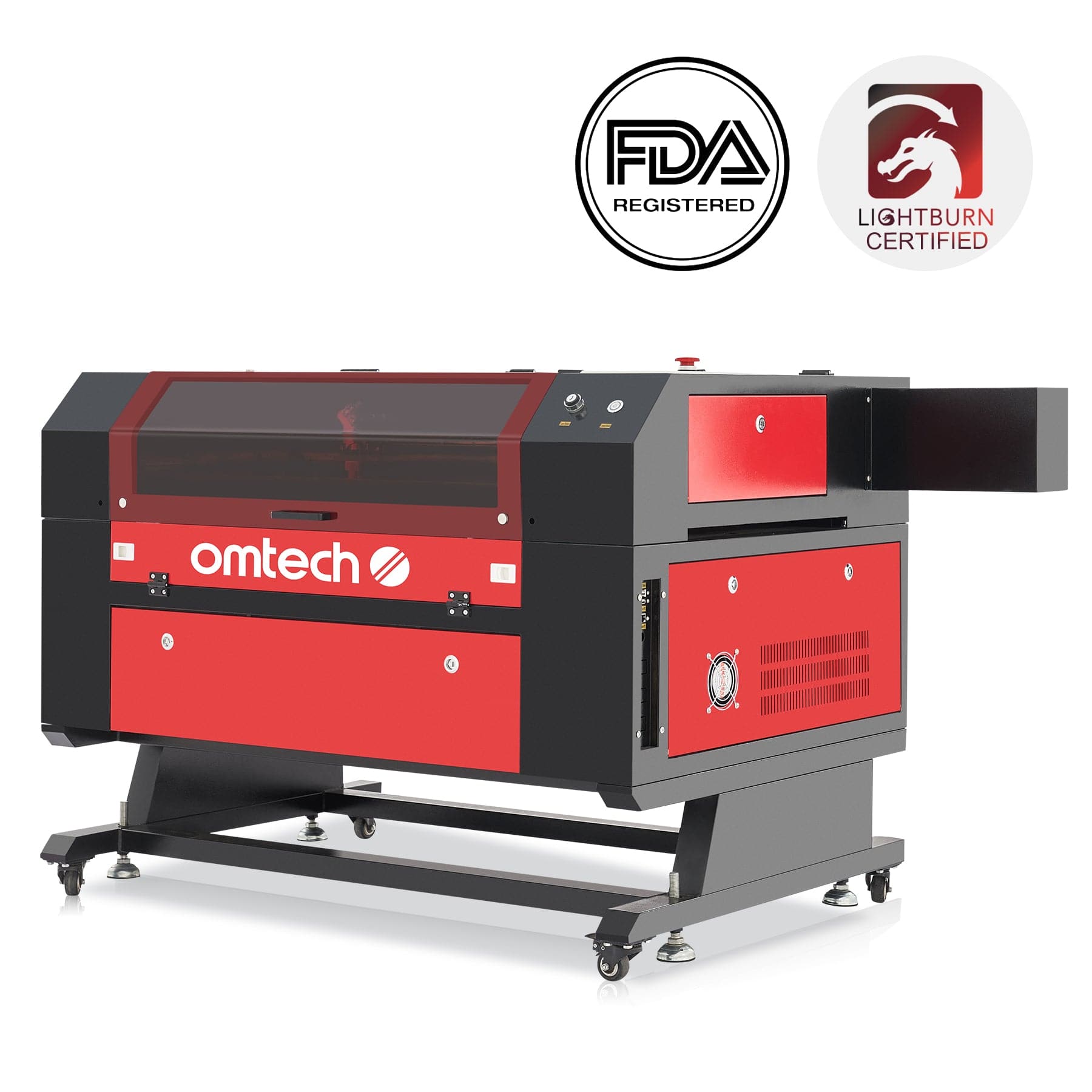

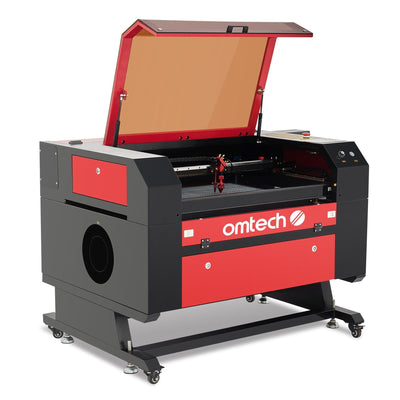

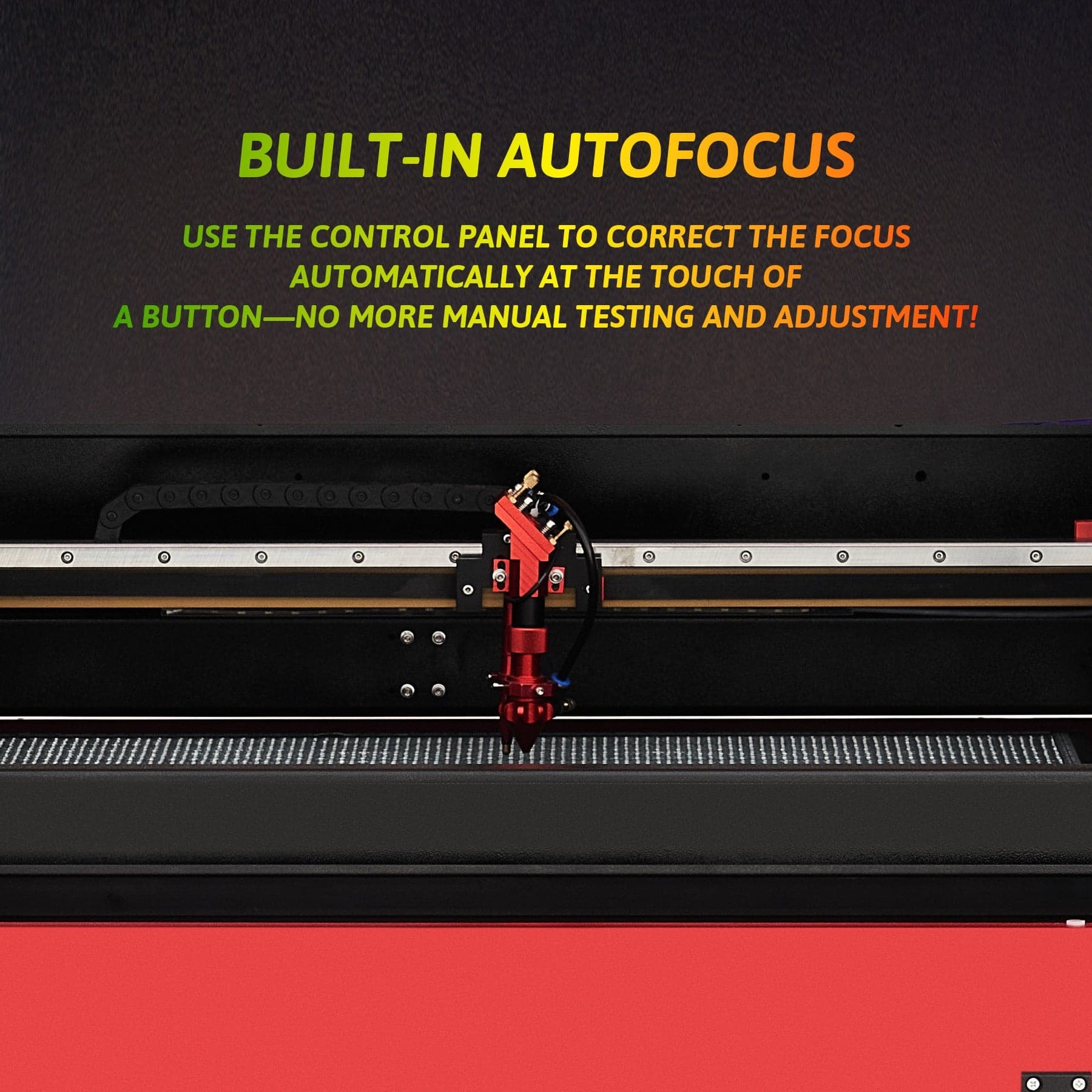

AF2028-80 - 80W CO2 Laser Engraver Cutting Machine with 20” x 28” Working Area (with Auto Focus)

AF2028-80 - 80W CO2 Laser Engraver Cutting Machine with 20” x 28” Working Area (with Auto Focus)

Regular price $3,699.99
/
Shipping calculated at checkout.
FEATURES
80W CO2 Laser Cutting Power

Cuts up to 9 mm (.35″) thick acrylic/plexiglass. Increases response speed, performance, and cutting power

Four-Way Pass-Through

Allows you to work pieces much larger than the bed size by sliding them through as you go

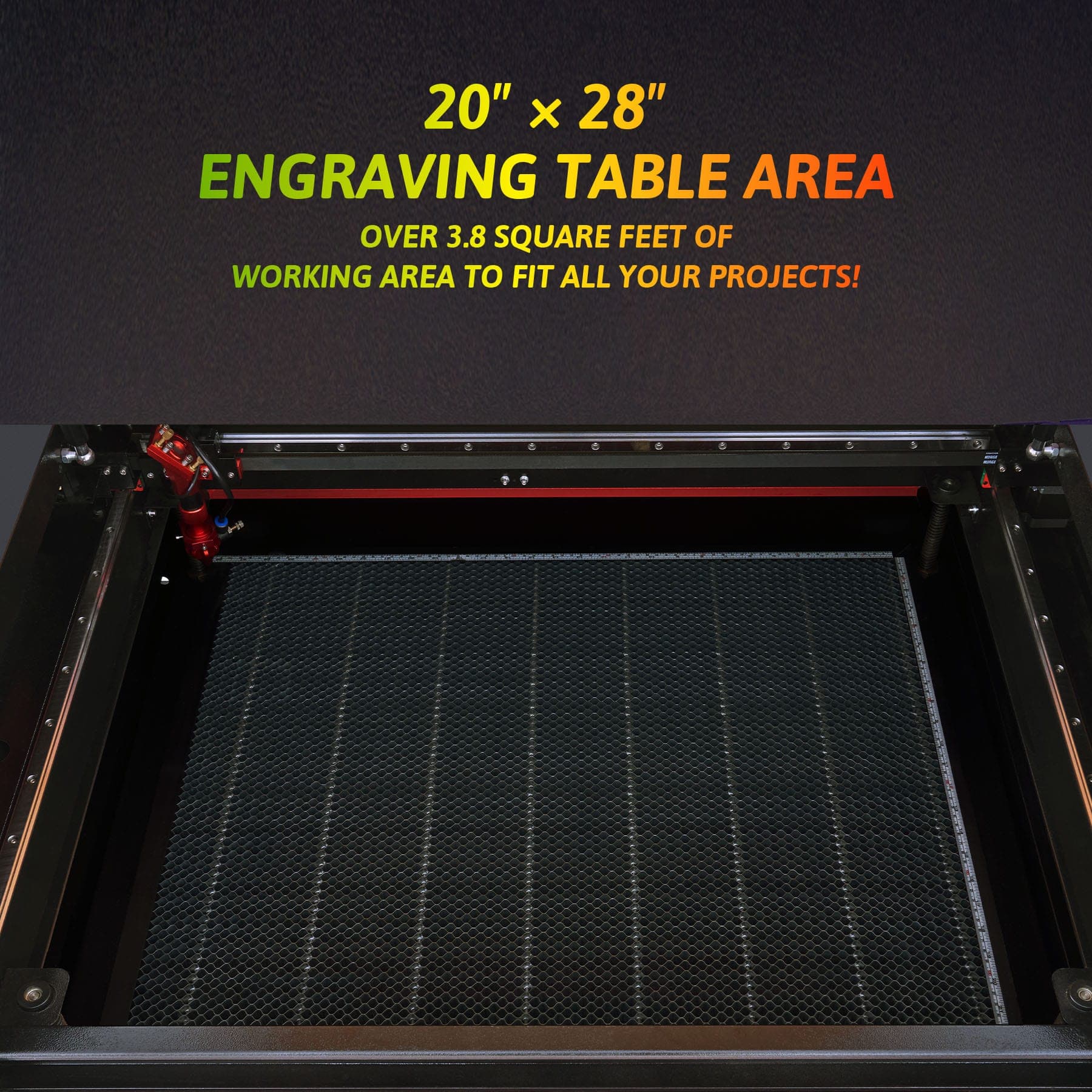

Dual Workbeds

20” x 28” workbed with both honeycomb and knife blade engraving platforms to handle a wide variety of objects and materials

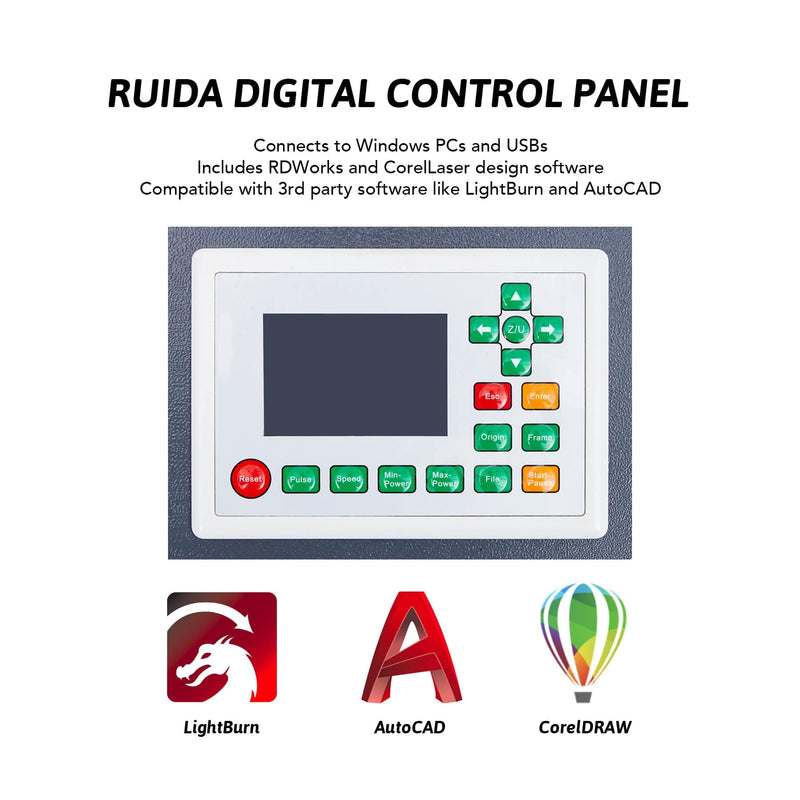

RUIDA Digital Controller

The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8.

Liner Rail Guiding System

Equipped with X and Y stepper motors for efficient power transmission between the guide rails with high precision and long service life.

USB & Ethernet Ports

2 USB ports allow flash drive connectivity and a USB-to-USB PC connection. Plus, the ethernet connection is compatible with PCs.

Compatible with LightBurn Software

All OMTech CO2 laser machines of 50W and up are compatible with Light Burn software.

Certifications: Designed and engineered in USA

• FDA Compliant

• CE Certification

• ISO9001 Quality Certification

Safety Ensurance

Air Assist

Built-in Ventilation

Water Flow Sensor

Automatic Shutdown

2-Year Warranty

2-year warranty on machine parts and hardware (exclusions apply);

1-year warranty on laser tubes and power supplies of 70W and up;

6-month warranty on laser tubes and power supplies 40W—60W.

Tech Support

45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

SPECS
  • POWER

    80W

  • Overall Dimensions

    47”x 34.2" x 36.6"

  • Net Weight

    330 lbs

  • Engraving Speed

    100 - 500mm/s

  • Cutting Speed

    1 - 80mm/s (actual speed depends on material)

  • Engraving/Cutting Thickness

    0-0.35‘’(depending on materials)

  • Software

    Ruida DSP Control System

  • Data Transfer Interface

    Flash Drive; USB to PC; Ethernet to PC & Offline Capabilities

  • Compatible System

    Windows, MacOS if you use LightBurn software (not included)

  • Working Size

    19.5” x 27.5”

  • Supported Graphics Formats

    HPGL; BMP; GIF; JPG; JPEG; DXF; DST; AI; etc

  • Lift Table

    0-10”

  • Focal Lens Diameter

    20mm

  • Focal Length

    2.5''

  • Mirror Diameter

    25mm

YOU CAN ENGRAVE AND CUT THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
YOU CAN ENGRAVE AND CUT THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
