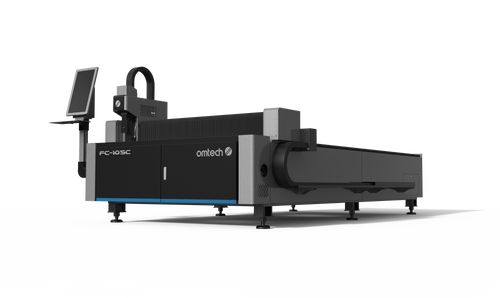

OMTECH FC-105C
”FC-105c, built for cost-effective light metal fabrication”
RAYCUS 1.5KW
*ESTIMATE $579/MO
IPG 1.5KW
*ESTIMATE $827/MO

Price Match Guarantee

*Monthly Payment Depends on Your Credit, APR as low as 5.09%, All Payments are 100% tax-deductible

WHAT IS INCLUDED?

Fiber Laser Chiller

Transformer

Free On-site Installation

2 Year limited warranty

Download Brochure Get A Custom Quote
Complete The Form To Request A Quote Today!

Name *
Email *
Phone Number *
Installation Zipcode *
Your Message *
"FC-105C, Built for Cost-Effective Light Metal Fabrication"

OMTech FC-105C comes equipped with a 1.5kW IPG power source capable of easily cutting up to 7.5/16 inch (12mm) carbon steel sheets with an economical Raycus option.The compact all-in-one open bed table configuration saves space without sacrificing performance, along with our industrial leading affordability to guarantee high ROI for light metal fabrication. Designed and assembled in the USA by OMTech’s team of expert laser engineers with a reliable 2 year limited warranty, on-site installation plus training, 30 days return policy and lifetime US-based technical support staff.

"FC-105C, Built for Cost-Effective Light Metal Fabrication"

OMTech FC-105C comes equipped with a 1.5kW IPG power source capable of easily cutting up to 7.5/16 inch (12mm) carbon steel sheets with an economical Raycus option.The compact all-in-one open bed table configuration saves space without sacrificing performance, along with our industrial leading affordability to guarantee high ROI for light metal fabrication. Designed and assembled in the USA by OMTech’s team of expert laser engineers with a reliable 2 year limited warranty, on-site installation plus training, 30 days return policy and lifetime US-based technical support staff.

FEATURES
IPG LASER POWER SOURCE:

Equipped with a 1.5 kW IPG laser power source, the world leader in fiber optics, known for its excellent beam quality, high energy density, superior electro-optical conversion efficiency, and guaranteed stability. Maintenance-free laser cutting with an expected lifetime of 100,000 operation hours. (RAYCUS power source optional)

All-in-one design for saving spaces:

This model has offered the all-in-one compact design to save space on your shop floor to increase your productivity output per square feet.

SWISS-ENGINEERED LASER HEAD:

Swiss-designed laser head specifically engineered for a variety of power for large format cutting applications. The industrial fiber laser head includes a high-pressure resistant, anti-dust laser shield and air-tight sealed interior that keeps the optics free of dust and debris. A drawer-type lens mount allows easy access for routine maintenance, and interchangeable laser nozzles providing an array diverse cutting capabilities.

HIGH PRECISION REDUCER:

Japanese Shimpo reducer delivers the features for today’s industry needs. High reduction ratios, without sacrificing efficiency. A compact design with overhung load capacities, and ultimate precision backlash options. All of that, while requiring minimal maintenance that  ensures the reliability of machine performance at the top level of industry.

AUTO FOCUS SYSTEM:

An anti-crash auto-tracking system protects the laser head & lens from accidental collisions, while a two-point centering focus system finds the perfect focal distance instantly.

SCHNEIDER SERVO MOTORS & DRIVERS:

European-engineered Schneider servo motors power the laser head across the gantry-rail system with extreme precision within ±0.05 mm and repeated positioning within ±0.02 mm.

HIGH-PRECISION GEAR RACK:

The high-precision Helical Gear Rack & Pinion system is 5× mill-cut ruler-processed and laser-interferometer tested to ensure acute cutting accuracy. An easy-to-use adjustment block allows quick readjustments throughout the life of the machine.

AEROSPACE GRADE GANTRY:

All OMTECH FC series equipped with aerospace-grade 6061-T6 aluminum beams annealed at 600 °C (1112 °F) with a reinforcing triangular framework for extra rigidity, excellent shock absorption, and lightweight, low-inertia performance. Each beam is rough-machined, annealed, and twice vibration age-treated to ensure a lifetime of strength and stability.

SAWTOOTH BLADE CUTTING WORKBED:

The cutting platform equipped with removable SawTooth Blades to minimize laser beam reflections and disperse radiation, enhancing edge cut quality and facilitating kerf clearance. Included sheet metal clamps provide extra stability throughout processing.

SWING-ARM COMPUTER DISPLAY:

Freely to adjust the 17” computer monitor with its convenient swing-arm mount. RK-330AM Industrial Computer with Windows 10 PRO provides multi-user management and enhanced data security for businesses large and small. Upload cut files via USB 3.0, LAN, Serial Port, or Wireless Network Card.

CypCut 2000s SOFTWARE:

The industry-standard fiber cutting software simplifies complex sheet cutting tasks with in-depth design tools, integrating CAD, Nest, and CAM modules in one package. Complete drawing, editing, nesting, and workpiece framing in only a few clicks.

AUTOMATIC GAS/LUBRICATION SYSTEM:

Create various gas assist presets that activate automatically or manually control the type of gas, flow, and pressure independently. The actual air/gas pressure output is displayed on the control panel in real time. FC-105c additionally provides an automatic lubrication system.

DEBRIS COLLECTION SYSTEM:

Multiple debris zones funnel below the workbed to collect scrap and dust, channeling metal waste into a rolling cleanup tray.

INDUSTRIAL WATER CHILLER INCLUDED:

Your purchase includes an OMTech OEM PRO-Series Water Chiller specially designed to water-cool industrial fiber laser systems

TRANSFORMER & BLOWER INCLUDED:

Your purchase includes an SG-40 Electric Transformer and TNS-30 Automatic Voltage Regulator to ensure a consistent supply of electricity to the fiber power source. The included centrifugal dust blower removes up to 2356 m³/h.

DESIGNED & ASSEMBLED IN USA:

Design, final assembly, and quality control completed in USA with 2-Year Bumper to Bumper Limited Warranty.

LIFETIME SUPPORT:

All purchases include lifetime product technical support with an OMTech Laser Specialists based in Anaheim, California.

ONSITE INSTALL/TRAINING:

Your purchase includes onsite installation and training service led by OMTech US based Expert Technician. Your team will learn all basic aspects of fiber laser safety, machine setup, maintenance, software, and (time permitting) your specific cut job configuration.

EQUIPMENT PARAMETERS
  • Cutting Area

    3000 × 1500 mm

  • Positioning Accuracy (X/Y)

    ±0.05 mm

  • Repeated Positioning Accuracy (X/Y)

    ±0.02 mm

  • Max Speed

    666 mm/s

  • Z-Axis Travel

    80 mm

  • Max Acceleration

    0.6 G

  • Work Table Max Load

    700 kg

  • Shuffle Table

    NO

  • Metal Safety Cover

    NO

  • Machine Size

    3900 × 2760 × 1650 mm

  • Machine Packaging Dimensions

    3960 × 2320 × 1900 mm

  • Machine Net Weight

    1200 kg

  • Product Weight

    1700 kg

  • Power Protection Level

    IP54

  • Laser Power

    1500 W

  • Power Parameters

    3-Phase AC380V 60 Hz

EQUIPMENT PROCESSING ACCURACY
  • φ30 mm Circular Cut Accuracy

    0.08-0.12 mm

  • φ30 mm Adjacent Cut Accuracy

    0.06-0.10 mm

  • φ200 mm Adjacent Cut Accuracy

    0.08-0.10 mm

  • φ200 mm Diagonal Cut Accuracy

    0.08-0.12 mm
